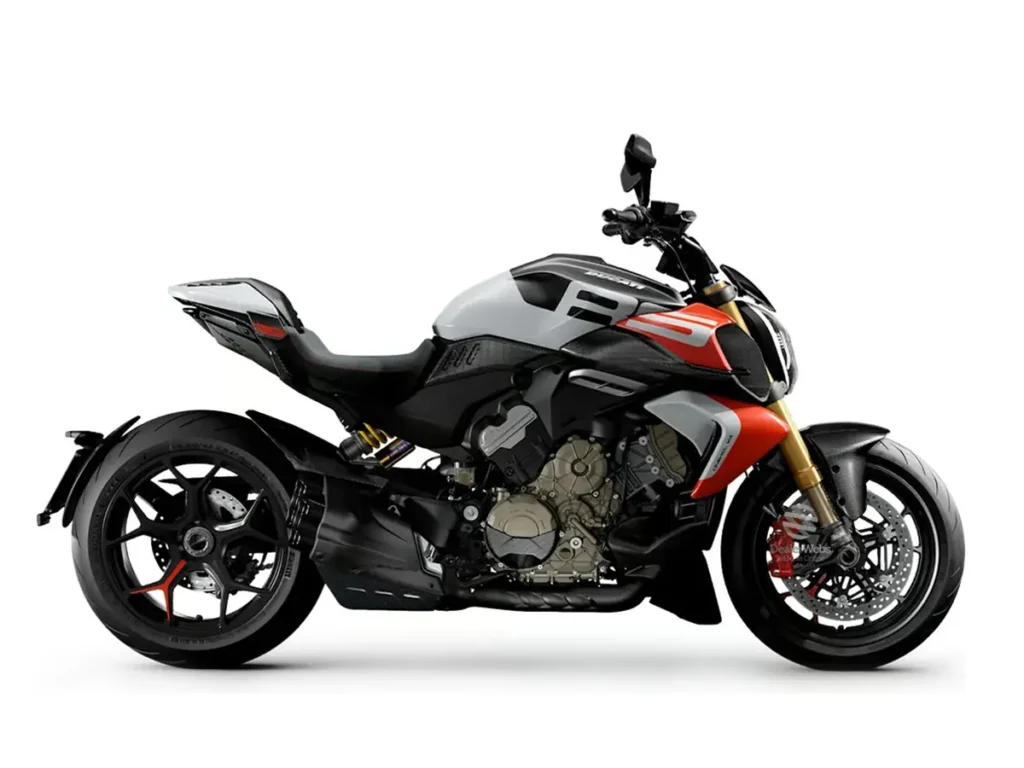

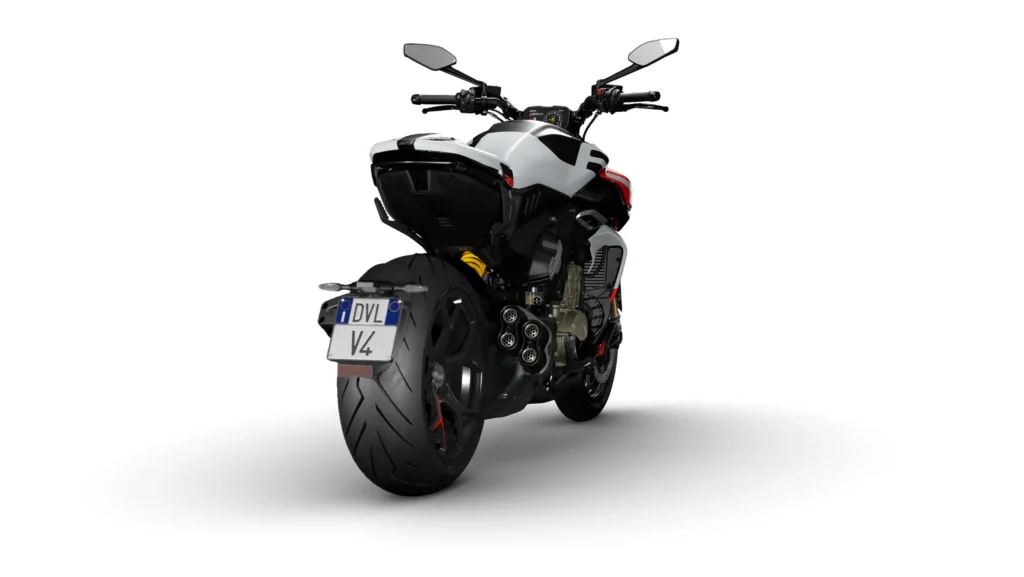

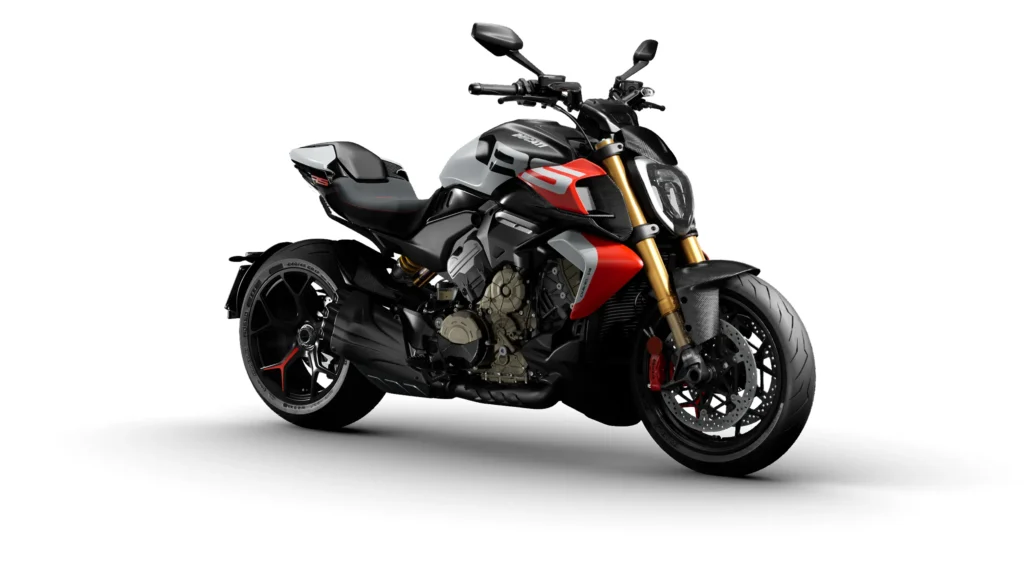

Ducati DIAVEL V4 RS

£34,395.00 SRP (Suggested Retail Price). The recommended price of the bike including VAT, but before on-the-road costs. You'll also pay the DVLA first-registration fee and the first year's road tax (VED) to ride it away.
  • 1,103 cc Engine
  • 182 hp Power
  • 220 kg Weight
  • 790 mm Seat

Description

TECH SPECS

Specifications

1 specification
Condition New

Engine

8 specifications
Engine Type Desmosedici Stradale 90° V4, 1103 cc, counter-rotating crankshaft
Displacement 1,103 cc (67.3 cu in)
Bore x Stroke 81 mm / 53.5 mm (3.2 in / 2.1 in)
Compression Ratio 14.0:1
Fuel System Injection
Starting System Electric
Maximum Power 182 hp (133.8 kW) @ 11,750 rpm
Maximum Torque 120 Nm (12.2 kgm, 89 lb ft) @ 9,500 rpm

Transmission

3 specifications
Transmission 6 gears with Ducati Quick Shift up/down 2.0
Final Drive Chain, front sprocket z15, rear sprocket z43
Clutch Multiplate dry clutch with slipper action on over-run

Brakes & Suspension

6 specifications
Brakes Front 2x Ø 330 mm semi-floating discs, radial Brembo Stylema Monobloc 4-piston calipers, Cornering ABS
Brakes Rear Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Suspension Front Ø 48 mm fully adjustable Öhlins fork
Suspension Rear Fully adjustable Öhlins monoshock, aluminium single-sided swingarm, 145 mm travel
Tyre Front Pirelli Diablo Rosso IV, 120/70 ZR17
Tyre Rear Pirelli Diablo Rosso IV, 240/45 ZR17

Dimensions & Weights

5 specifications
Frame Type Aluminium monocoque frame
Wheelbase 1,602 mm (63.1 in)
Fuel Capacity 20 l (5.3 US gal)
Seat Height 790 mm (31.1 in)
Curb Mass 220 kg (485 lb)

Instruments & Electrics

1 specification
Instrumentation TFT
