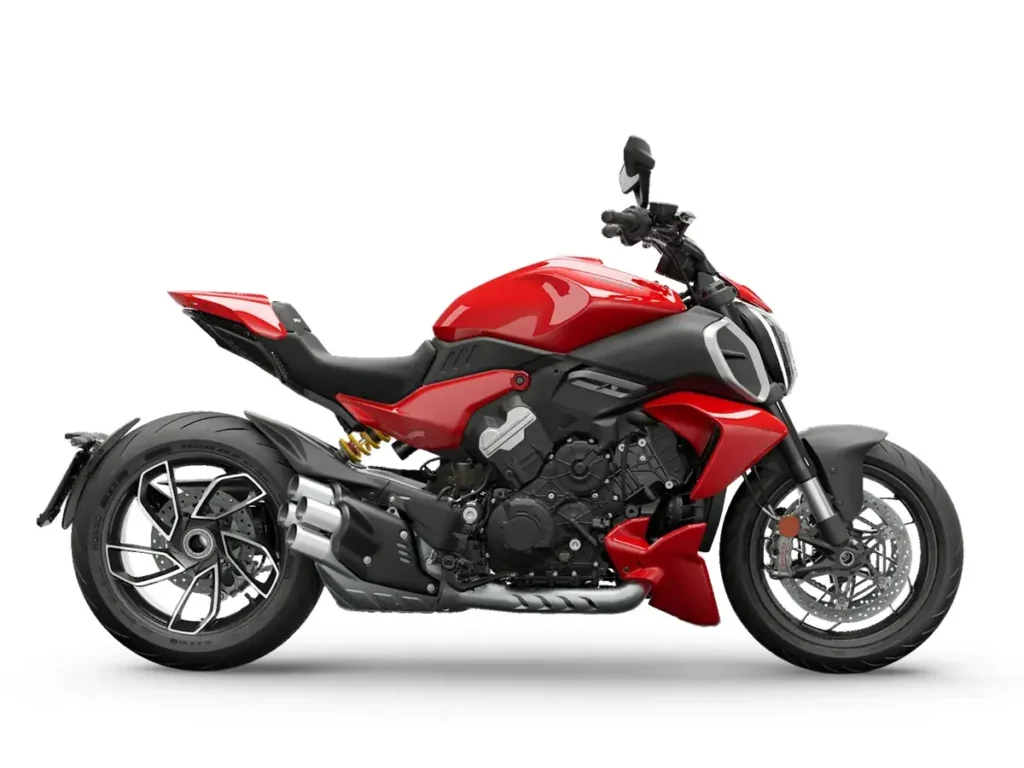

Ducati DIAVEL V4

Price range: £24,595.00 through £24,895.00 SRP (Suggested Retail Price). The recommended price of the bike including VAT, but before on-the-road costs. You'll also pay the DVLA first-registration fee and the first year's road tax (VED) to ride it away.
Colour
Ducati Red
  • 1,158 cc Engine
  • 168 hp Power
  • 223 kg Weight
  • 790 mm Seat

Description

TECH SPECS

Specifications

1 specification
Condition New

Engine

8 specifications
Engine Type 90° V4 Granturismo, 1158 cc, counter-rotating crankshaft
Displacement 1,158 cc (71 cu in)
Bore x Stroke 83 mm x 53.5 mm
Compression Ratio 14.0:1
Fuel System Injection
Starting System Electric
Maximum Power 168 hp (124 kW) @ 10,750 rpm
Maximum Torque 12.8 kgm (126 Nm, 93 lb ft) @ 7,500 rpm

Transmission

3 specifications
Transmission 6 speed with Ducati Quick Shift up/down
Final Drive Chain, front sprocket z16, rear sprocket z43
Clutch Hydraulically controlled slipper and self-servo wet multiplate clutch

Brakes & Suspension

6 specifications
Brakes Front Twin disc
Brakes Rear Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
Suspension Front Ø 50 mm fully adjustable usd fork
Suspension Rear Fully adjustable monoshock, aluminium single-sided swingarm
Tyre Front Pirelli Diablo Rosso III, 120/70 ZR17
Tyre Rear Pirelli Diablo Rosso III, 240/45 ZR17

Dimensions & Weights

5 specifications
Frame Type Aluminium monocoque frame
Wheelbase 1,593 mm (62.7 in)
Fuel Capacity 20 l (5.3 US gal)
Seat Height 790 mm (31.1 in)
Curb Mass 223 kg (492 lb)

Instruments & Electrics

1 specification
Instrumentation TFT
