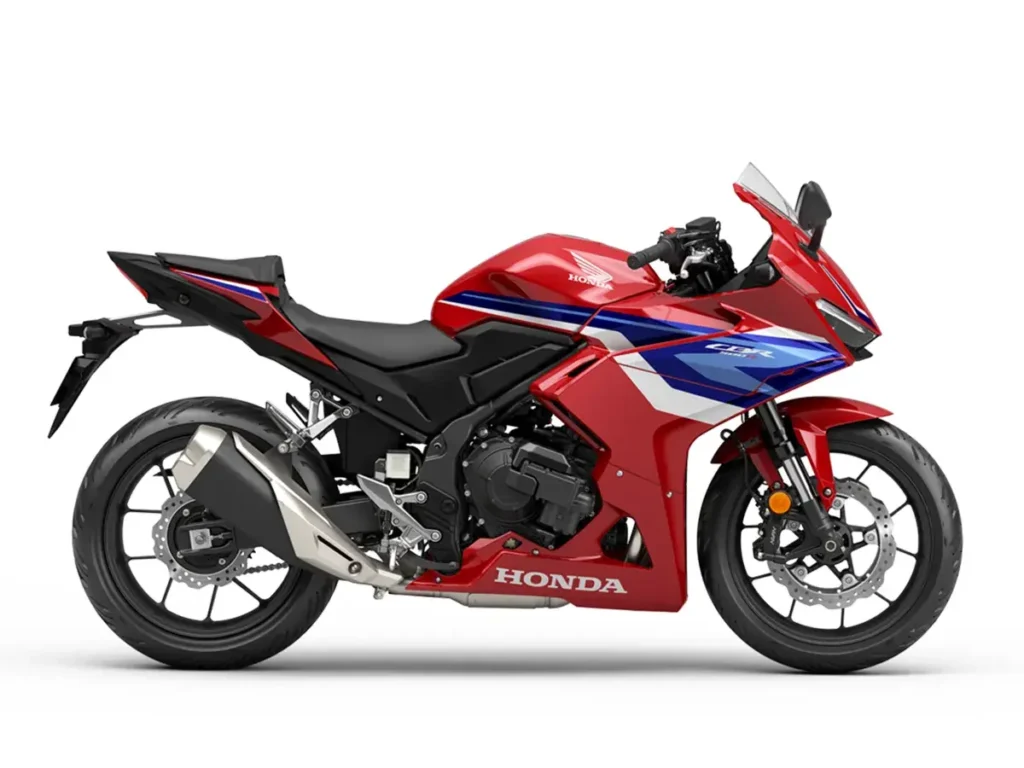

Honda CBR 500R

£6,899.00 OTR (On The Road). The complete ride-away price. It already includes VAT, delivery, number plates, pre-delivery inspection, the DVLA first-registration fee and 12 months' road tax (VED), so there's nothing more to add.
Colour
GRAND PRIX RED
  • 471 cc Engine
  • 35kW [47 hp] Power
  • 194 kg Weight
  • 785 mm Seat

Description

TECH SPECS

Specifications

1 specification
Condition New

Engine

8 specifications
Engine Type Liquid-cooled 4-stroke DOHC parallel twin
Displacement 471 cc
Bore x Stroke 67 mm x 66.8 mm
Compression Ratio 10.7:1
Fuel System Injection
Starting System Electric
Maximum Power 35kW [47hp] / 8,600rpm
Maximum Torque 43Nm / 6500 rpm

Transmission

3 specifications
Transmission 6-speed
Final Drive Chain
Clutch Wet multiplate, Assisted slipper clutch, Honda E-Clutch

Brakes & Suspension

6 specifications

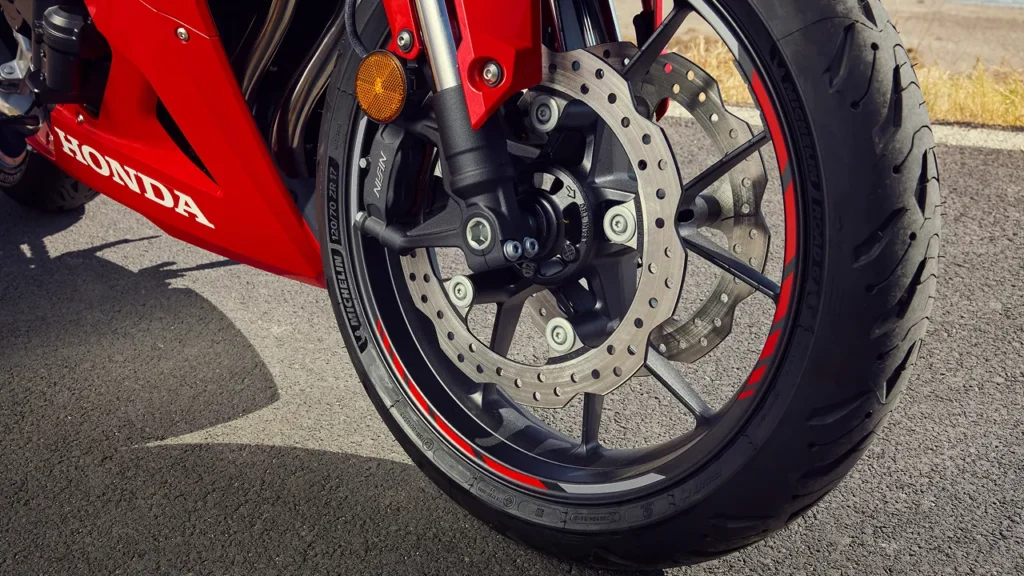

Brakes Front Dual 296 mm x 4 mm disc with Nissin radial-mount four piston calipers
Brakes Rear Single 240 mm x 5 mm disc with single piston caliper
Suspension Front Showa 41 mm SFF-BP USD forks
Suspension Rear Prolink mono with 5 stage pre-load adjuster, Steel hollow cross swingarm
Tyre Front 120/70ZR17M/C (58W)
Tyre Rear 160/60ZR17M/C (69W)

Dimensions & Weights

7 specifications
Frame Type Steel diamond
Trail 25.5°
Wheelbase 1,410 mm
Ground Clearance 130 mm
Fuel Capacity 17.1 L
Seat Height 785 mm
Curb Mass 194 kg
