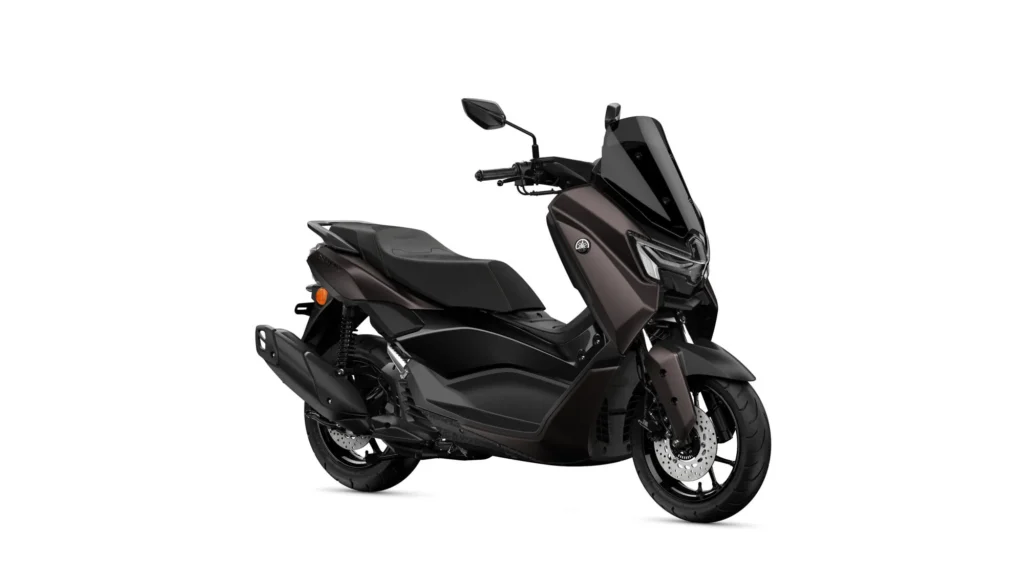

Yamaha NMAX 125 Tech Max

£3,951.00 OTR (On The Road). The complete ride-away price. It already includes VAT, delivery, number plates, pre-delivery inspection, the DVLA first-registration fee and 12 months' road tax (VED), so there's nothing more to add.
  • Engine 125cc
  • Power 9kW (12.2PS) @ 8,000rpm
  • Weight 132kg
  • Seat 770 mm

Description

TECH SPECS

Specifications

1 specification
Condition New

Engine

12 specifications
Engine Type 4-stroke, Liquid-cooled, SOHC, 4-valves
Displacement 125cc
Bore x Stroke 52 × 58.7mm
Compression Ratio 11.2 : 1
Fuel System Fuel Injection
Ignition TCI
Starting System Electric
Lubrication Wet sump
Maximum Power 9kW (12.2PS) @ 8,000rpm
Maximum Torque 11.2Nm (1.1 kg-m) @ 6,000rpm
CO2 Emissions 52g/km
Fuel Consumption 2.2l/100km

Transmission

1 specification
Transmission V-Belt Automatic

Brakes & Suspension

6 specifications
Brakes Front Hydraulic single disc, Ø 230 mm
Brakes Rear Hydraulic single disc, Ø 230 mm
Suspension Front Telescopic fork, 100 mm travel
Suspension Rear Unit swing, dual shock, 91 mm travel
Tyre Front 110/70-13M/C 48P Tubeless
Tyre Rear 130/70-13M/C 63P Tubeless

Dimensions & Weights

7 specifications
Frame Type Underbone
L x W x H 1,955 mm x 740 mm x 1,115 mm
Wheelbase 1,340mm
Ground Clearance 125mm
Fuel Capacity 7.1l
Seat Height 770 mm
Curb Mass 132kg
